TDPRO 30'' Rear Axle Drive Shaft Kit & 48V 1000W Electric Motor Gearbox +Front Racer Slick Tire 10x4.50-5'' & Rear Golf Cart Tires 11x7.10-5'' +Wheel Axle Hub for Racing Go-Kart Quad ATV Drift Trike
Product details
| Management number | 221737318 | Release Date | 2026/05/03 | List Price | $395.64 | Model Number | 221737318 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Steering shaft length: telescopic 18.90 into 22.83 inTie rod ends: telescopic 224mm-242mm(8.8in-9.5in)Rear axle spacer: Inner Diam: 25mm /0.98inch; Outer Diam: 30mm/1.18inch; Total Length: 63mm / 2.48inchFront Hub Size: 2.99"(76mm) hub /0.67"(17mm) bore; Mounted holes: 3 holesRear Hub Size: 2.95"(75mm) sprocket brake hub / 0.94"(24mm) boreRear shockEye center to center: 190mm (7.5inch)Mounting hole diameter: 0.3"(8mm)Load capacity: 300 lbs.Travel length: 1.6" (40mm)Brake caliperMounting Hole Central Spacing: 62mm/ 2.44inBrake Hose Length: 1200mm/ 47.24in48v 1000w brushless differential motorCommutation: brushlessSpeed (RPM): 4800rpmRated current: 18-35ARated voltage: 48VMax discharging time: 140minsHigh speed: 33kmhMedium speed: 26kmhLow speed: 16kmhGear Ratio: 9.5:1Torque: 2.62Nm
- Kit includes: 1 motor with gearbox +1 rear axle +1 seat +1 steering spindle +1 foot pedal pad +4 shock mount bracket +1 bearing set +1 steering shaft +2 spacers +1 front wheel hub +1 rear wheel hub +1 steering gear rack +2 front ties +2 rear tires +2 rear shocks +2 tie rods +1 brake caliper

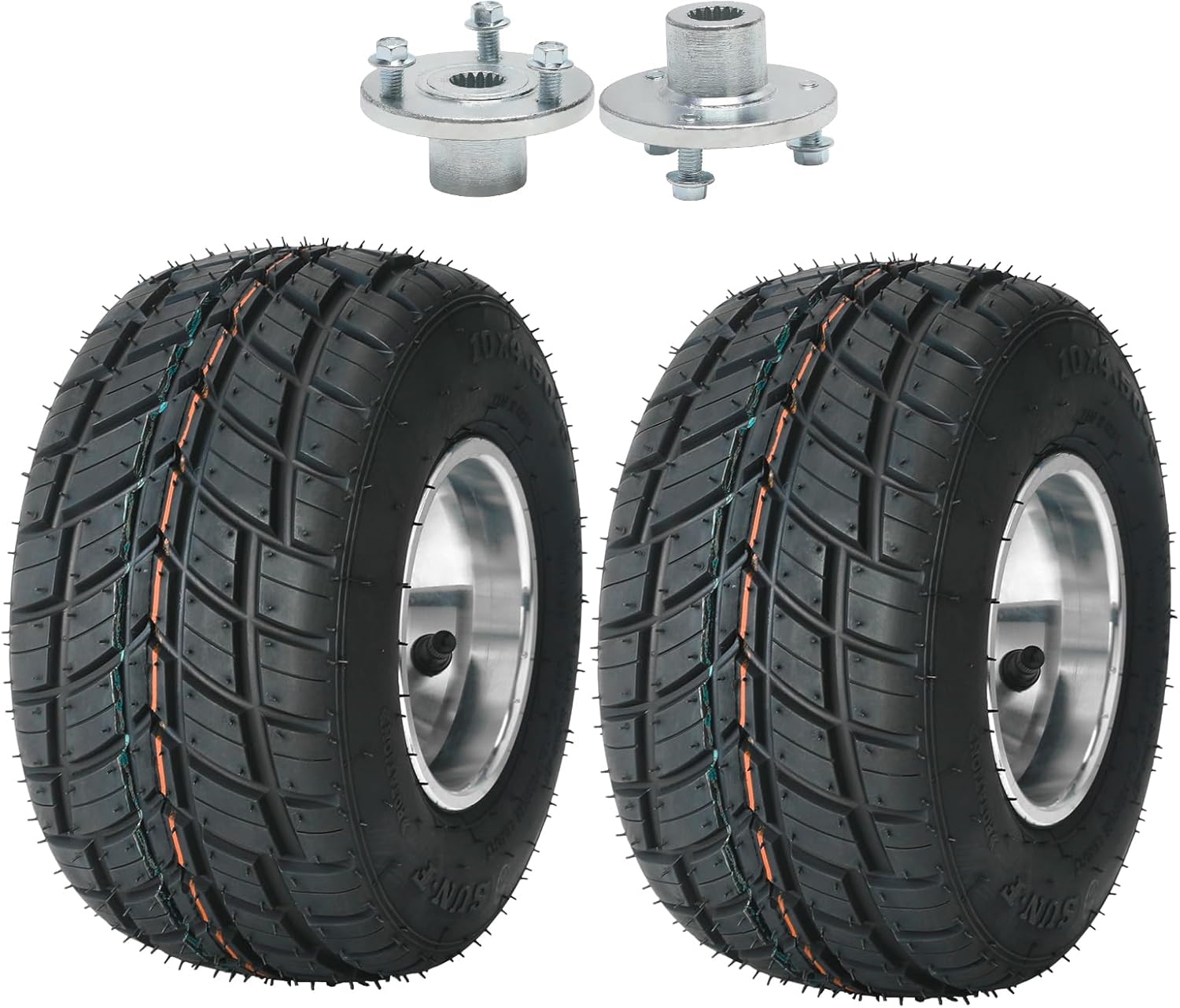

- Front tire: 10x4.50-5, 3 holes rim, 4-ply, H x W: 10.6’’ x 5.3’’, mounting hole spacing: 48mm / 1.9in, mounting hole: 8.5mm
- Rear tire: 11x7.10-5, 3 stud rim, 4-ply, H x W: 11.4’’ x 7.3’’, mounting hole spacing: 48mm / 1.9in, mounting hole: 8.5mm
- 16 tooth drive axle made by high strength chrome, bend proof, can support more than 500lbs, axle length is 30in / 760mm, hub mounting distance is 78mm / 3.1in
- Motor: 4800rpm; Rated current: 18-35ah; Max discharging time: 140mins; Rated voltage: 48v; High speed: 20mp/h, Medium speed: 16mp/h, Low speed: 10mp/h; Gear ratio: 9.5:1 Torque: 2.62nm
| Size | 10x4.50-5 |
|---|---|
| Color | black |
| Rim Size | 5 Inches |
| Brand Name | TDPRO |
| Load Index | 28 |
| Wheel Size | 5 Inches |
| Manufacturer | JCMOTO |
| Model Number | tk058+tk152+tk153 |
| Material Type | Nylon |
| Exterior Finish | Alloy Steel |
| Automotive Fit Type | Universal Fit |
| Included Components | 2 tire |
| Pitch Circle Diameter | 1.9 Inches |
| Manufacturer Part Number | tm168*2 |
| Compatible with Vehicle Type | Go Kart |
| Manufacturer Warranty Description | 90 days |
