SoldonSUN Midnite Solar Photovoltaic Combiner - 3-Position, ModelN. MNPV3
Product details
| Management number | 214765546 | Release Date | 2026/04/12 | List Price | $51.20 | Model Number | 214765546 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MidNite Solar MNPV3 Combiner Photos show MNPV3 with either breakers or fuses. Breakers/fuse holders sold separately. Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar. Description: Enclosure only (For 150 VDC charge controllers and 600 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders. Listed by ETL for US & CanadaSpecificationsSize: 10.5"L x 4.5"W x 3.5"D Weight: 2 Lbs
- (For 150 VDC charge controllers and 600 VDC grid tie inverters)
- Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
- Listed by ETL for US & Canada

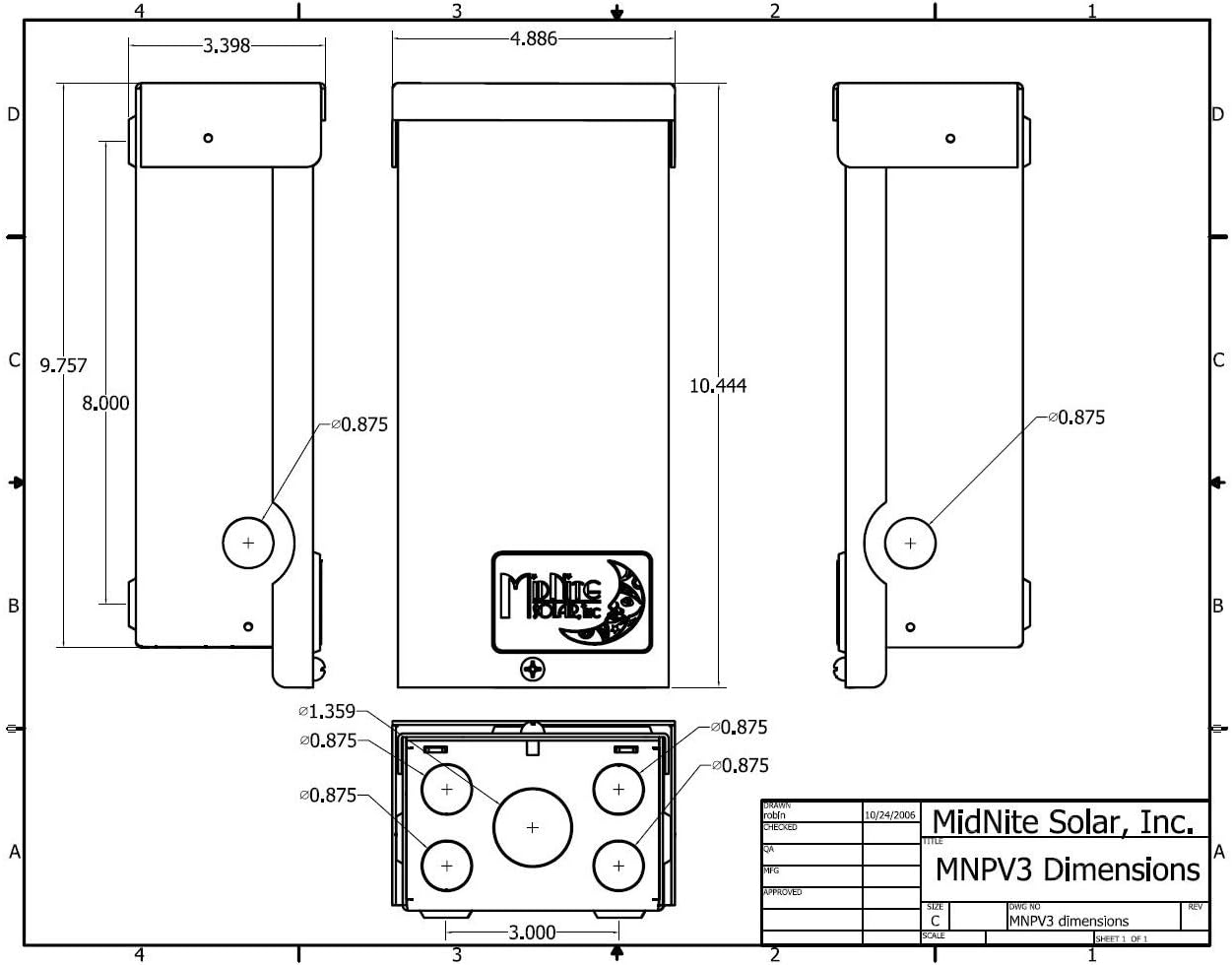

- Size: 10.5"L x 4.5"W x 3.5"D
| Brand Name | MidNite Solar |
|---|---|
| Phase Type | single-phase or three-phase |
| Unit Count | 1.0 Count |
| Item Weight | 2 Pounds |
| Manufacturer | SoldonSUN |
| Material Type | Aluminum |
| Maximum Current | 60 Amps |
| Number Of Circuits | 13 |
| Warranty Description | 5 Year Manufacturer |
| Item Dimensions L x W x H | 10.5"L x 4.5"W x 3.5"H |
