PSLER High Pressure Oil System IPR Air Test Tool Kit - Compatible with 6.0L-7.3L Powerstroke Diesel, Oil Pressure Tester with IPR Test Fitting & Gauge

Product Composition: IPR Valve Air Test Fitting:It is specially used to connect the IPR valve in the engine's high - pressure oil system to the testing equipment. It ensures that air can accurately and stably enter the IPR valve during the test, providing a reliable connection channel for detection. Gauge Air Meter:Integrates the functions of a pressure gauge and an air flow meter. The pressure gauge can display the pressure value in real - time during the test, helping maintenance personnel determine whether the pressure of the high - pressure oil system is within the normal range. The air flow meter can accurately measure the air flow rate entering the system, providing key data for analyzing the working state of the system. To connect: 1. Remove the air cleaner, FICM, and coolant degas bottle (turbo removal is NOT required) 2. Remove the IPR valve 3. Thread in the tool, hand tightening using the hose; connect shop air and listen for leaks. 4.Locate smallest leaks: Close the shutoff valve on the tool to seal the system. If desired, a scan tool can be used to monitor air pressure in the system by observing the ICP sensor reading. Notes: The product contain installation instructions. If you have any questions about that, we kindly recommend you go to the nearby mechanic to ask for professional instructions.

• Fitment: This quality air test tool special kit fits 6.0L-7.3L Powerstroke Diesel engines, including 7.3L IPR air test fitting. Works smoothly with updated standpipes as a practical oil pressure tester kit for 6.0L-7.3L, covering basic high pressure oil system maintenance needs
• Effective Leak Detection: Detects leaks of ANY size in 6.0L diesel high pressure oil system—no extra scan/IPR driver tools needed. This high pressure oil system ipr air test tool fully seals the system, reducing potential costly post-installation repairs for your 6.0L-7.3Lpowerstroke high pressure oil system
• Durable & 5,300 PSI Rated: Heavy-duty hydraulic hose (5,300 PSI rated) made of high-standard rubber fits fittings/IPR adapter snugly. High-strength steel fittings ensure tight sealing, good hardness and corrosion resistance— a reliable high pressure ipr air test tool for long-term use
• Easy Installation: Comes with 2 extra o-ring sets for IPR fitting. As a user-friendly ipr air test tool special kit, remove air cleaner, FICM, coolant degas bottle; thread tool into IPR valve (hand-tighten), connect shop air—close shutoff valve to locate small leaks.

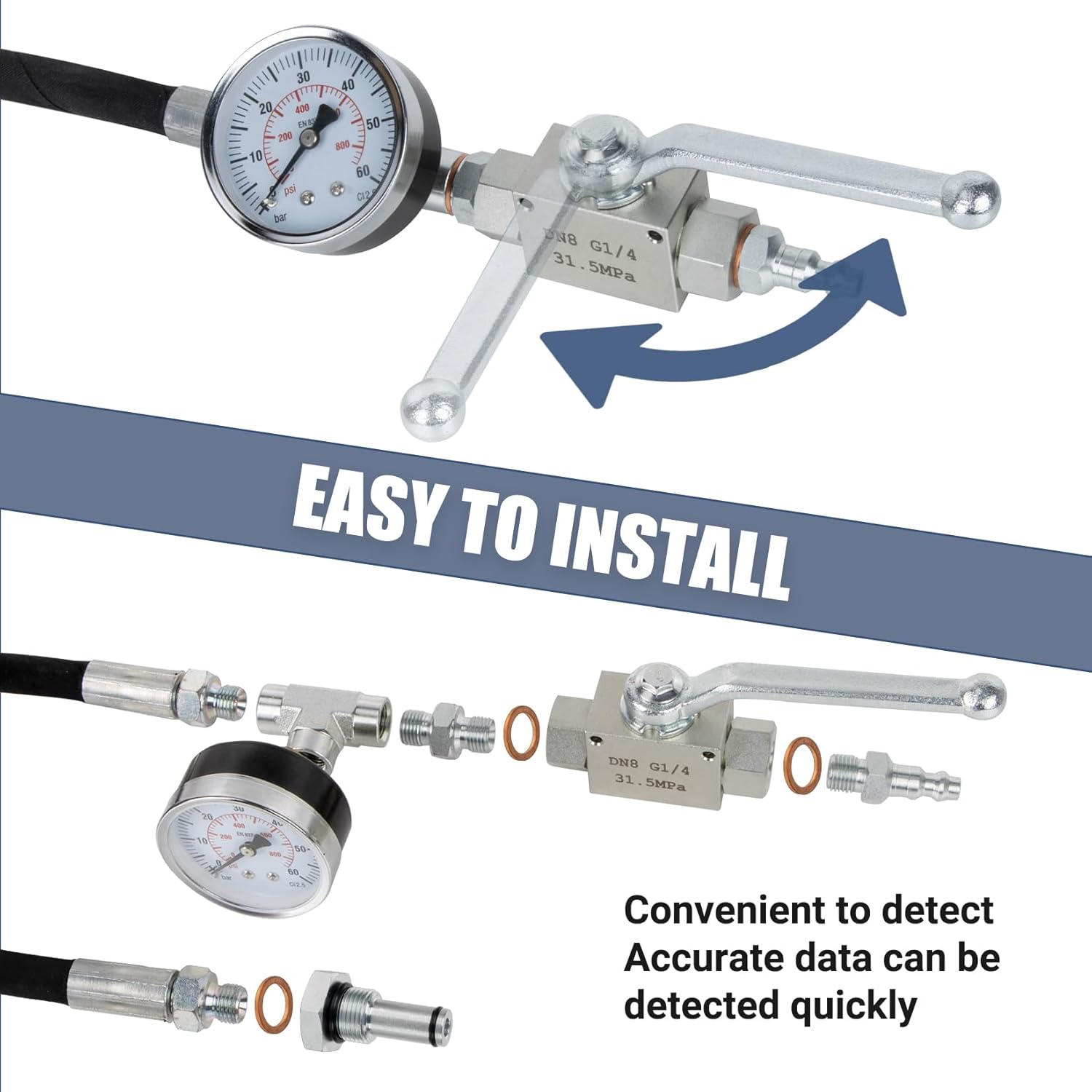

• The kit includes a full set of practical accessories: 1 hose, 1 valve, 1 6.0L ICP fitting, 1 7.3L ICP fitting, 1 air meter, 2 connectors, 2 copper washers, 1 user manual and 1 T-fitting, providing you with a smooth testing experience
