Fuel Tank EFI Check Valve Assembly w/O-Rings Changing Rebuild Kit For Harley-Davidson Softail Heritage Springer Fat Boy FLST FLSTFI 2001-2007 62189-01A

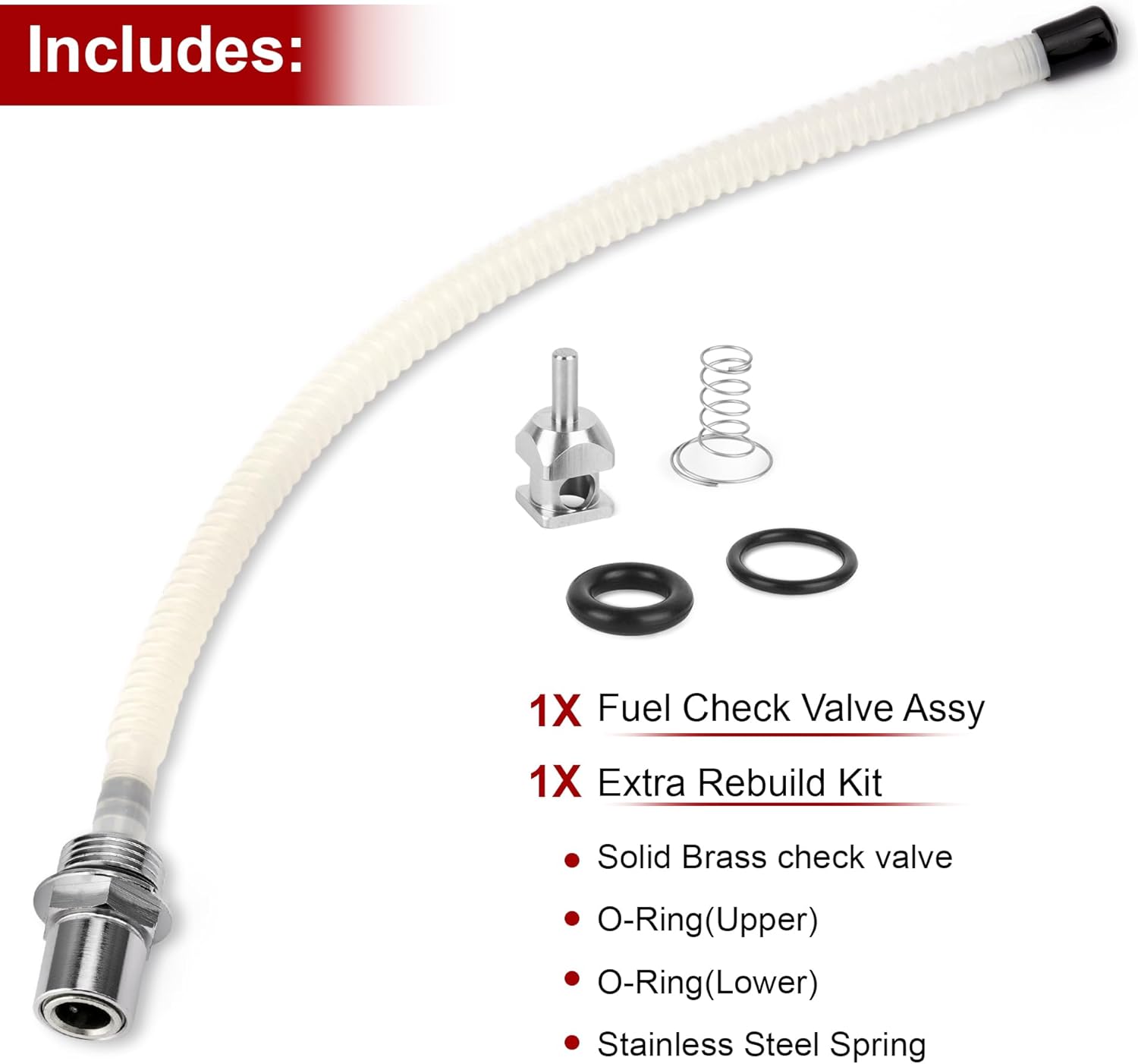

Part Type: Fuel Check Valve w/ Extra Rebuild Kit Fitment Type: Direct Replacement, model specific Material: Brass, Stainless Steel Connection: Quick Connect Part Number: 62189-01A, 62228-03 Package Includes: 1x Fuel Check Valve Assy. 1x Extra Rebuild Kit · Solid Brass check valve · O-Ring(Upper) · O-Ring(Lower) · Stainless Steel Spring Remove: 1. Empty the tank of fuel. 2. Lift up the check valve collar to disconnect the fuel line from the check valve quick connect. · DO NOT loose the "nut"(actually it is a seat) with a spanner wrench, nothing will happen but destroy the fuel line by being twisted. · Sprayed a little silicone lubricant inside the valve is not a must, but makes the removal job more easier.  3. Remove the upper o-ring(small one). Press up the valve pin in the center, which is seated under a spring, and pick out the upper o-ring used a sharp tip hook at the same time. · Keep the valve pin being pressed up(with a screwdriver or a rod) · Prepare a tool with a sharp tip in angles(less than 90°), an o-ring pick tool or bent steel wire · Insert the tool tip into the gap between the o-ring and the valve core to the end, ensures the tip can hook up the edge of the o-ring. · Slide the tip along the o-ring groove clockwise for serveral rotations, until the tip can hook up and lift the o-ring. Important: DO keep pressing the valve pin up until the upper o-ring being picked out, or you will not make any efforts.  4. Use a needle nose plier to pull out the valve core and spring components.  5. Remove the lower o-ring(large one). Insert and slide the tip along the groove clockwise for serveral rotations, until the tip can hook up and lift the o-ring. Pull out. 6. Do some clean and lubricate work. Replace and Install: 1. Assemble the spring and valve core. Align and insert the spring(small spiral end) into the valve core hole which is located on the top. 2. Push valve core and the spring(large spiral end) into the central hole until it is proper seated. 3. Install the upper o-ring. Push the o-ring into the valve, uniform its shape with tool, ensuring it is completely seated in the groove, not falling off. 4. Install the lower o-ring. Push and make sure there is uniform stretching of the o-ring and do not just pull only on one side of it. Use a tool if necessary to ensure the o-ring evenly seat and fit snugly in the groove without being twisted or deformed. 5. Lift up the check valve collar to connect with the fuel line until it clicks in place. Description: · Fuel release valve assembly for leakage fix, complete maintenance or repair work · Refer to part number: 62189-01A, 62228-03 · Fix fuel leaks and low flow issues, restore performance of the fuel supply system · For Harley-Davidson Softail injected models 2001-2007, not compatible with other fitments due to varient sizes of seal rings · Directly connect to use, extra component changing kit is included for convenient replacing Fitment: 2005 For Harley-Davidson 15th Anniversary Fat Boy FLSTF 2007 For Harley-Davidson Softail Custom EFI FXSTC 2005-2007 For Harley-Davidson Softail Deluxe EFI FLSTNI 2001-2007 For Harley-Davidson Softai Deuce FFXSTD 2001-2007 For Harley-Davidson Softail Fat Boy EFI FLSTFI 2001-2007 For Harley-Davidson Softail Heritage Classic EFI FLSTCI 2006 For Harley-Davidson Softail Heritage EFI FLSTI 2001-2003 For Harley-Davidson Softail Heritage Springer EFI FLSTSI 2001-2007 For Harley-Davidson Softail Night Train EFI FXSTBI 2005-2007 For Harley-Davidson Softail Springer Classic EFI FLSTSCI 2001-2006 For Harley-Davidson Softail Springer EFI FXSTSI 2001-2007 For Harley-Davidson Softail Standard EFI FXSTI

• Fuel release valve assembly for leakage fix, complete maintenance or repair work
• Refer to part number: 62189-01A, 62228-03
• Fix fuel leaks and low flow issues, restore performance of the fuel supply system
• For Harley-Davidson Softail injected models 2001-2007, not compatible with other fitments due to varient sizes of seal rings
• Directly connect to use, extra component changing kit is included for convenient replacing
