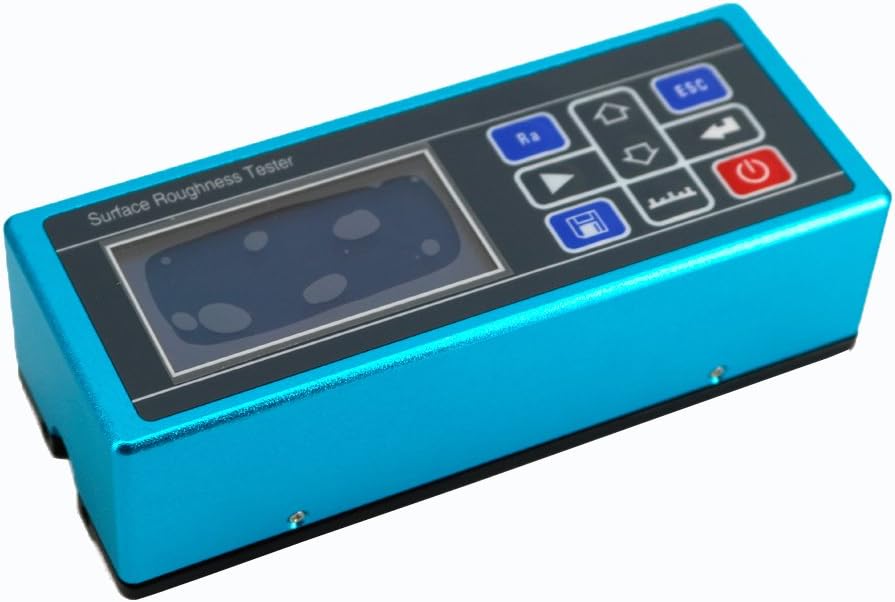

Digital Surface Roughness Tester Profilometer KR210 Ra: 0.005-16.000um Rz: 0.02-160.00um
Product details
| Management number | 211142877 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211142877 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The performance index of sensorMeasuring range 160 μmTip radius 5 μmTip material DiamondStylus force 4mN(0.4gf)Stylus angle 90°The guide head vertical radius 45mm ItemThe maximum driving trip 17.5mm/0.7inchIndicating error Not more than ± 10%Variation of indication Not more than 6%The measured profileRoughness, waviness, the original contour ParameterRa(0.005μm ~ 16μm),Rz(0.02μm ~ 160μm),Rq, Rt, Rx,Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr.Filter RC,PCRC,Gauss,ISO13565The sampling length L 0.25mm,0.8mm,2.5mm,8mmEvaluation length L (1-5)lInternal storage capacity 100 groups of original data External input / output interfaceUSBElectric source Built-in rechargeable lithium ion battery or external power adapter
- KR210 surface roughness tester with automatic dormancy, automatic shutdown and power saving function
- Using DSP chip to control and data processing, high speed, low power consumption
- Measurement information display, menu prompt information, false information and switch machine and other tips that information
- Can be connected to a computer and printer
- Electromechanical integration design, small volume, light weight, easy to use
| Color | Black & Blue |
|---|---|
| Style | Digital |
| Material | Metal |
| Part Number | KR210 |
| Manufacturer | Graigar |
| Batteries Included | No |
| Batteries Required | Yes |
| Item Package Quantity | 1 |
| Is Discontinued By Manufacturer | No |
