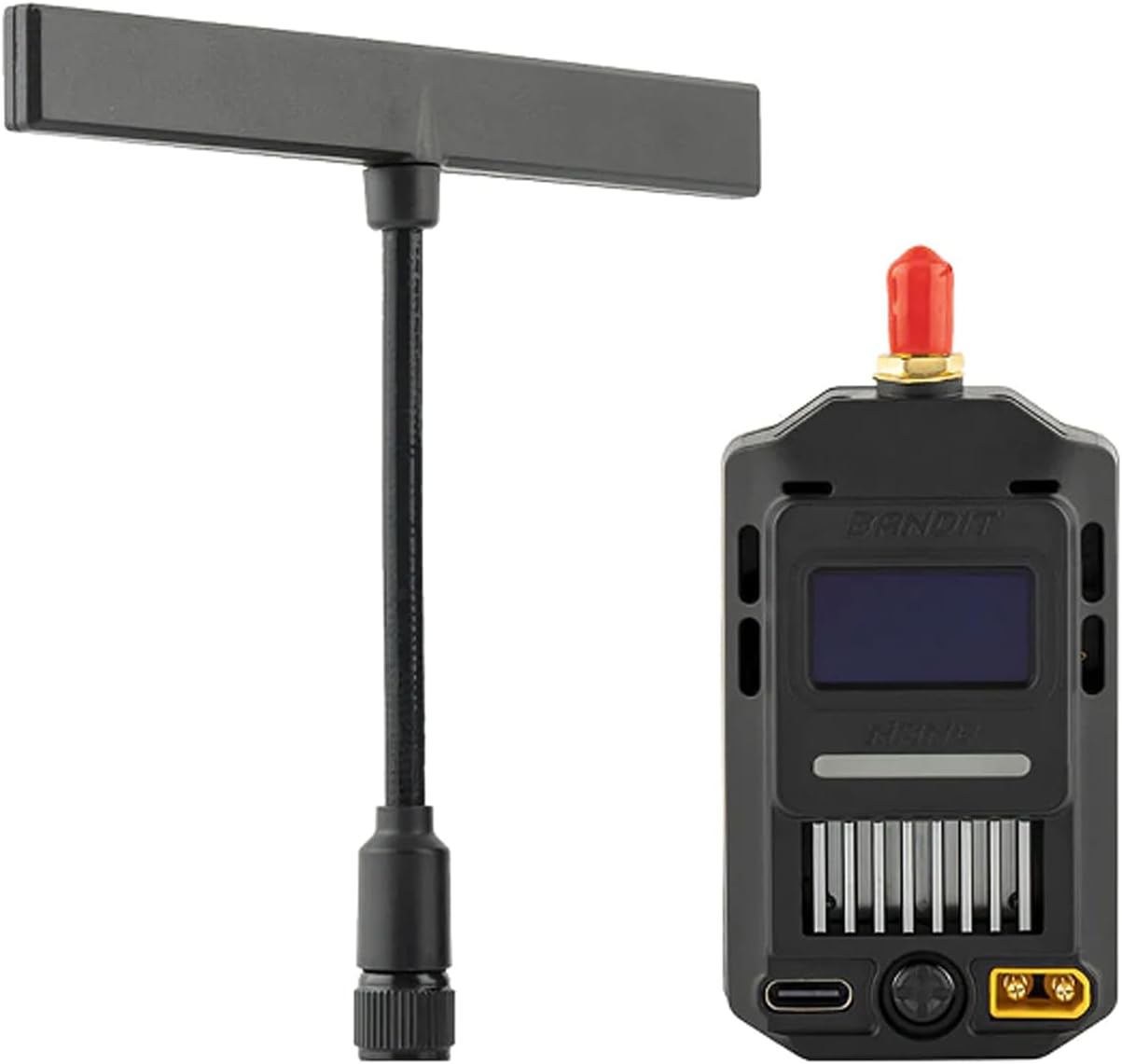

Bandit Nano ExpressLRS 915MHz RF Module
Product details
| Management number | 220368008 | Release Date | 2026/05/03 | List Price | $30.40 | Model Number | 220368008 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications Item: Bandit Nano ExpressLRS RF Module Regulatory Domain: FCC915 MCU: ESP32(main), ESP8285(aux, as ESP backpack) RF Chip: SEMTECH SX1276 Refresh Rate Min/Max: 25Hz/200Hz RF Output Power: 1000mW/30dBm Nano standard 8 pin connector Built-in OLED screen XT30 Power Supply Voltage: DC 6V ~ 16.8V Weight: 62.5grams (with T antenna） Dimension: 68.5*41.0*27.0mm With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a "Nano" Module bay.
- Up to 1 Watt power output Packet rates up to 200Hz Optimized circuitry for ultra-low power consumption Built-in TCXO oscillator
- Low noise, high comfort High contrast OLED display High efficiency cooling system Wifi and Bluetooth support
- Built-in ExpressLRS backpack 5 Directional nav key 915/868MHz T Antenna included
- With the Nano connector, support Zorro, Pocket and MT12 Radio
| Brand | RADIOMASTER |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | RADIOMASTER |
| BuiltIn Media | 915/868MHz T Antenna, Built-in ExpressLRS backpack, 5 Directional nav key, Nano standard 8 pin connector |
| Frequency Range | 915MHz |
| Mfr Part Number | RMS-0064 |
| Additional Features | Noise Reduction, Portable |
| Connectivity Protocol | Bluetooth, Wi-Fi |
