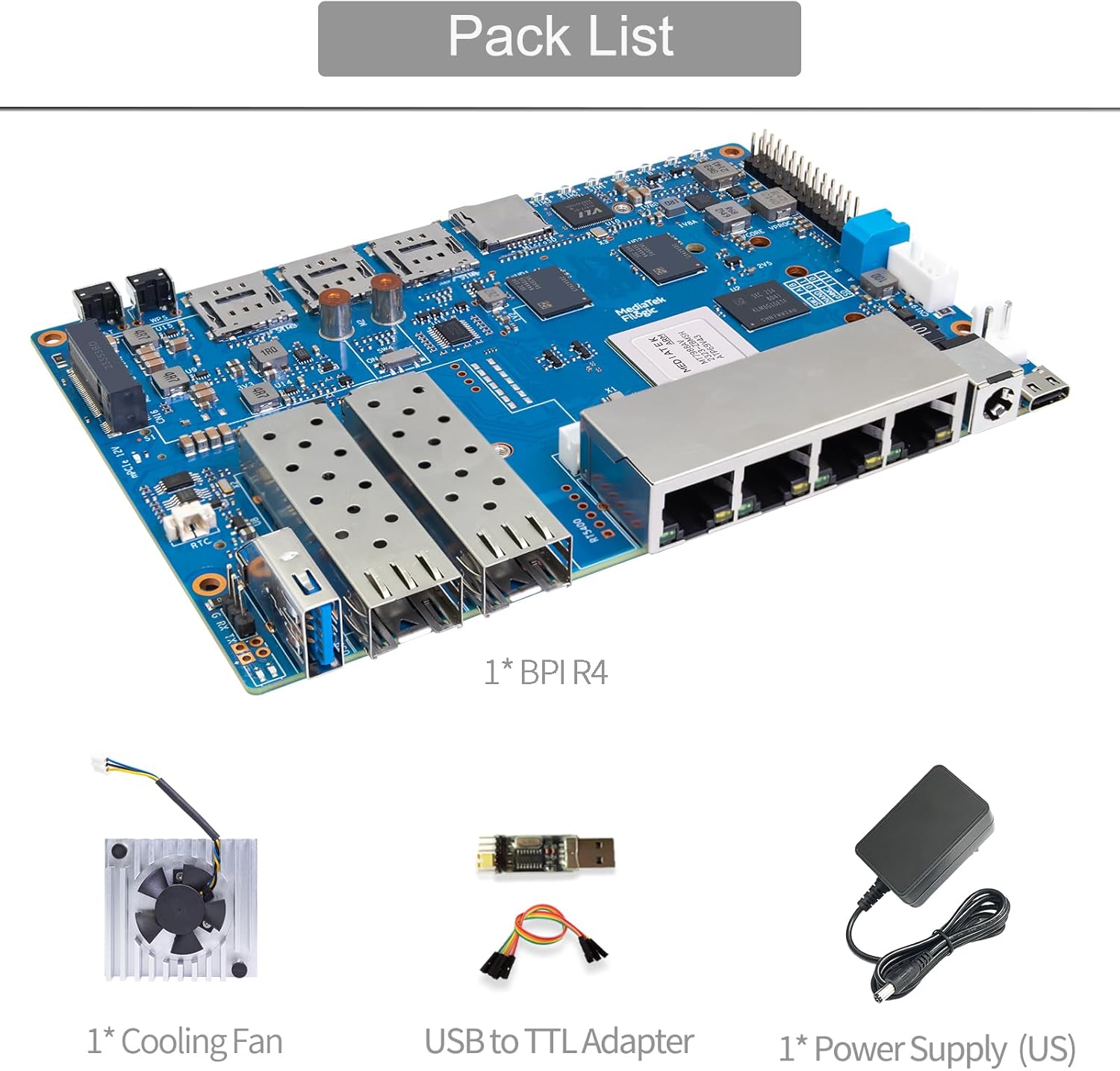

Banana Pi BPI-R4 WiFi 7 Router Development Board, with MediaTek MT7988A Chip, 4GB RAM and 8G eMMC onboard, 2X 10Gbe SFP Slot,4X Gbe Network Port (with Fan Kit)
Product details
| Management number | 212361690 | Release Date | 2026/04/06 | List Price | $103.82 | Model Number | 212361690 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Key FeaturesMediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor4GB DDR48GB eMMC flash128MB SPI-NAND FlashMicro SD card slot2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)4x Gbe network port1x USB3.2 slot1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)26 PIN GPIO Header for expanding applicationPOE function customizable (present version not support POE function)Application directionInternet service RouterWifi 7 Wireless Router4G/5G Wireless RouterWireless RepeaterHome security GatewayHome AutomationNas deviceNetwork and communication applicationsSupport： support @ youyeetoo.com forum: forum.youyeetoo.com （Recommend） Communication and customized consulting: am2 @ youyeetoo .com
- [SOC] Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 (1.8GHz) design ,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard.The 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience.
- [Tips] This product does not include the wifi 7 module.If you need the wifi 7 module, please ask "youyeetoo".
- [Network] It have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card)
- [OpenWRT] Provide OpenWRT 21.02 wifi 2.4G and 5G working fine.support nand flash ,SD card ,eMMC flash boot.
- [WIKI] wiki.banana-pi.org/Banana_Pi_BPI-R4;Feel free to ask a questions by mail am2#youyeetoo.com(# >>>@)
| Brand | youyeetoo |
|---|---|
| Model Name | BPI-R4 |
| Manufacturer | youyeetoo |
| Mfr Part Number | AZ2-US-BPTCR4MAIN02-TC |
| Processor Brand | MediaTek |
| Processor Count | 4 |
| Processor Speed | 1.8 GHz |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Compatible Devices | Wi-Fi 7 NICs, NVME SSDs, USB devices, devices connectable via GPIO |
| RAM Memory Installed | 4 GB |
| RAM Memory Technology | DDR4 |
| Connectivity Technology | 10 Gigabit Ethernet, Gigabit Ethernet, Wi-Fi 7 |
| Memory Storage Capacity | 8 GB |
