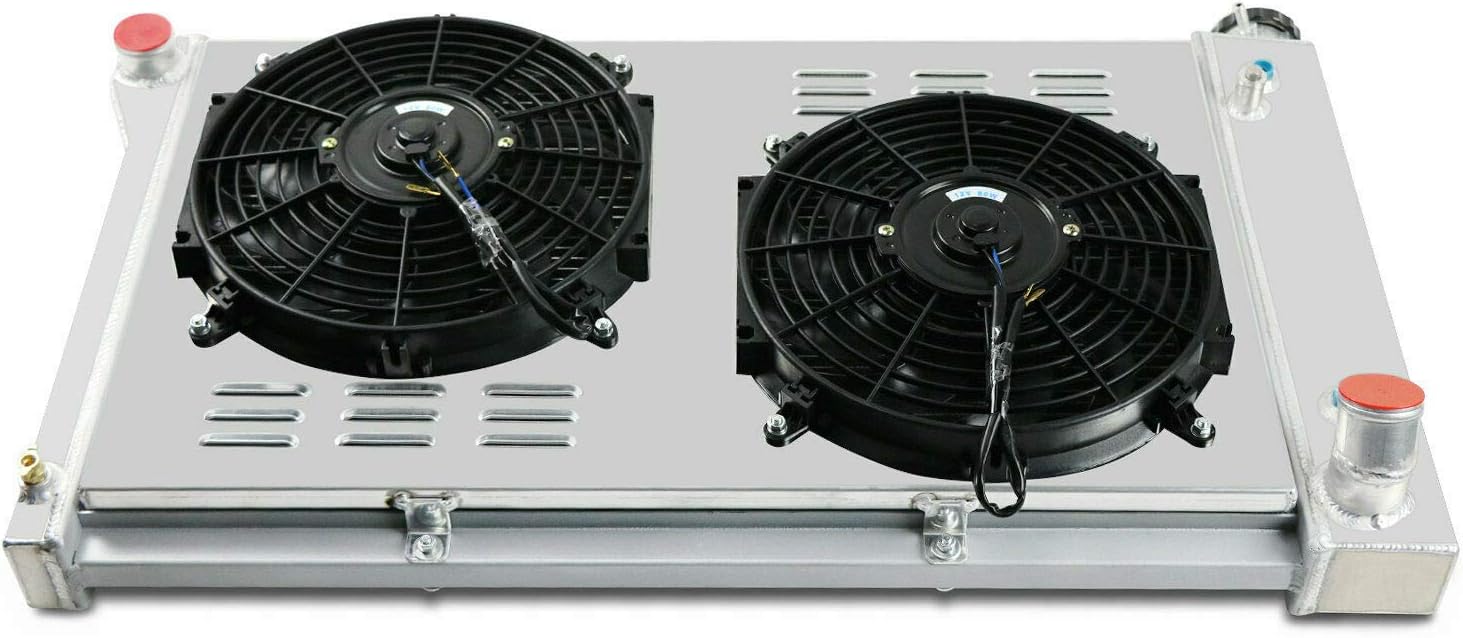

ALLOYWORKS CU369 Radiator Compatible with 1967-1972 Chevy GMC C/K Series C10 C20 C30 Pickup Suburban Truck 1971 1972 Radiators, 3 Row Radiador 2 X12" Fan Shroud Relay Kit, Full Aluminum, AT MT

Vehicle Fitment:FOR 1969-1972 CHEVROLET BLAZERFOR 1968-1972 CHEVROLET C10 PICKUPFOR 1968-1972 CHEVROLET C10 SUBURBANFOR 1968-1972 CHEVROLET C20 PICKUPFOR 1968-1972 CHEVROLET C20 SUBURBANFOR 1968-1972 CHEVROLET C30 PICKUPFOR 1969-1971 CHEVROLET G10FOR 1969-1971 CHEVROLET G20FOR 1971 CHEVROLET G30FOR 1968-1972 CHEVROLET K10 PICKUPFOR 1968-1972 CHEVROLET K10 SUBURBANFOR 1968-1972 CHEVROLET K20 PICKUPFOR 1968-1972 CHEVROLET K20 SUBURBANFOR 1968-1972 CHEVROLET K30 PICKUPFOR 1971-1972 CHEVROLET P10FOR 1971-1972 CHEVROLET P20FOR 1971-1972 CHEVROLET P30FOR 1968-1972 GMC C15/C1500 PICKUPFOR 1968-1972 GMC C15/C1500 SUBURBANFOR 1968-1972 GMC C25/C2500 PICKUPFOR 1968-1972 GMC C25/C2500 SUBURBANFOR 1968-1972 GMC C35/C3500 PICKUPFOR 1969-1971 GMC G15/G1500 VANFOR 1970-1971 GMC G25/G2500FOR 1971 GMC G35/G3500 VANFOR 1970-1972 GMC JIMMYFOR 1968-1972 GMC K15/K1500 PICKUPFOR 1968-1972 GMC K15/K1500 SUBURBANFOR 1968-1972 GMC K25/K2500 PICKUPFOR 1968-1972 GMC K25/K2500 SUBURBANFOR 1968-1972 GMC K35/K3500 PICKUPManufacturer Part Number: DPI369,CC369,CU369,0369AA, 369 Interchange Part Number: KKS369 ,CUC369 ,R369 ,RR369 DRMC369 MC369Other Part Number: RA-CK67-3, RA-CK67-2 8010369, 433366Radiator Details:Core Dimensions: 17" high x 28-1/4" wideOverall Dimensions: 19-1/4" h x 33-7/8"wUpper inlet: 1-1/2" located Driver SideLower outlet: 1-3/4" located Passenger SideTrans-cooler: φ26*305*G1/4（Z)Transmission: Automatic and Manual.Color: SilverMaterial: Full AluminiumCore and Tank: All AluminumHigh Performance Racing Spec.Mounting Style: Bolt-OnRadiator style: CrossflowFit type: Vehicle SpecificCrafts: 100% Tig weldedDelivery: Local DeliveryFitment Type: Direct ReplacementPerformance: Up to 30%~45% more coolingPlacement on Vehicle: Engine CompartmentSurface Finish: Aircraft Grade Raw AluminumPetock Drain: OEM style brass petcock drainRadiator Cap: CNC machined filler neck and capFAN Specification:Maximum Fan CFM: 1730 cfmFan Diameter (in): 12.05"Thickness (in): 2.5"Number of Blades: 10 S-Type bladesBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat Kit Installation:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.185'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator.Gentle Hint:Parameters Meticulous Prior to Ordering.Pls compare the overall width with your original radiator.Warranty: 1 Year Warranty against manufacture defect and damage in transit.Professional installation is highly recommended! No Fitting Instructions Supplied!Please contact us for installation video or other any problem.

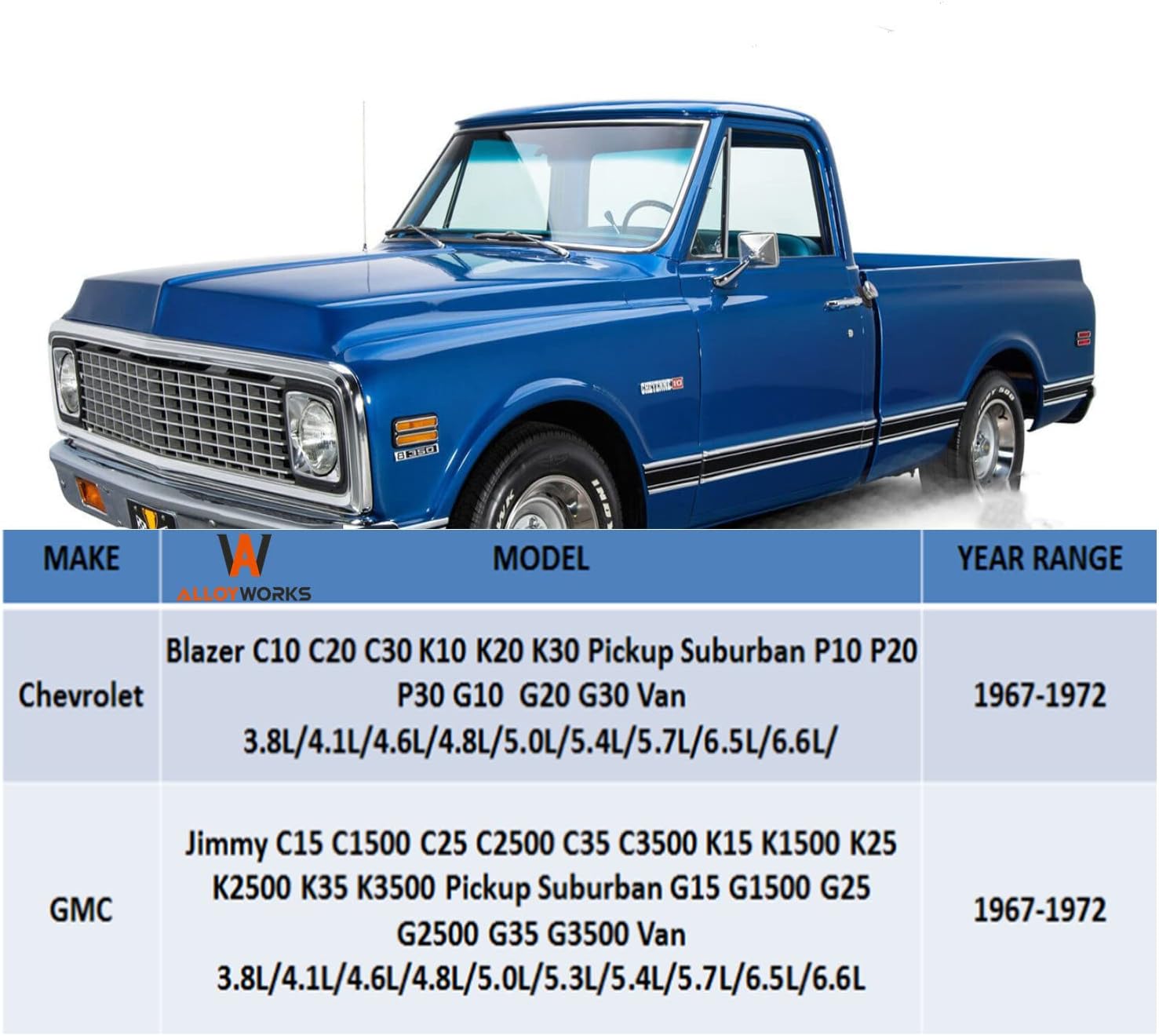

• ◆ [Vehicle Fitment] Radiator Compatible with 1967-1972 Chevrolet Blazer GMC C10 C20 C30 K10 K20 K30 C1500 C25 C2500 C35 C3500 K15 K1500 K25 K2500 K35 K3500 Pickup Suburban Truck P10 P20 P30 G10 G20 G30 G15 G1500 G25 G2500 G35 G3500 Van Jimmy L6 V8 Auto Engines
• ◆ [Dimensions] Core Dimensions: 17" high x 28-1/4" wide; Overall Dimensions: 19-1/4" h x 33-7/8"w; Upper inlet: 1-1/2" located Driver Side; Lower outlet: 1-3/4" located Passenger Side; Trans-cooler: φ26*305*G1/4（Z);
• ◆ [Premium Aluminum Radiator] The radiator is made of Aircraft AA5052 aluminum, constructed with 100% welded seams by TIG, brazed core technology and no epoxy. Direct fit and built to last long with high quality aluminum core.
• ◆ [Density Core] Cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators sold on Amazon. 14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators. It provides 30% more cooling capacity than a standard radiator.
• ◆ [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption.
