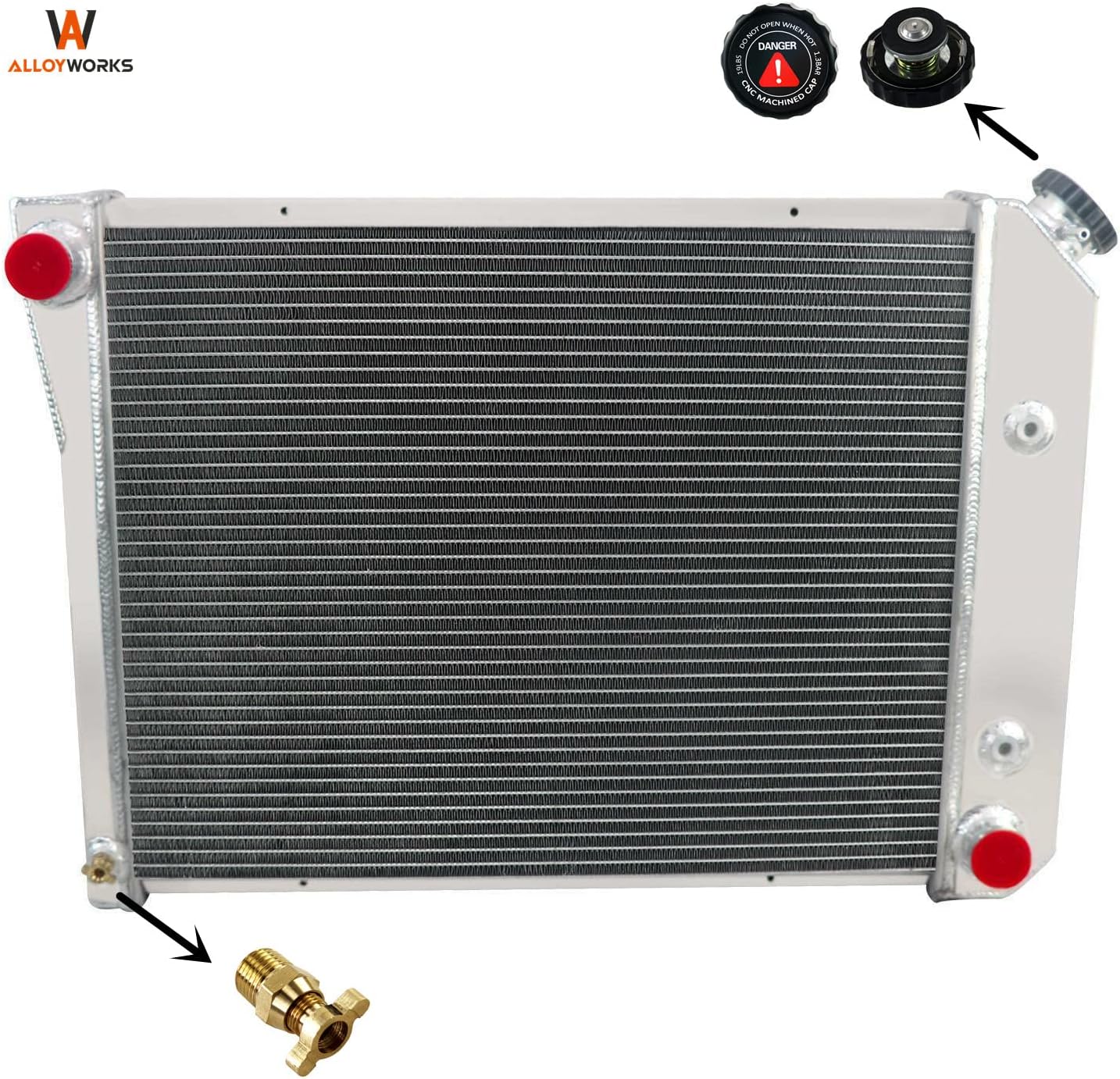

ALLOYWORKS 4 Row All Aluminum Radiator+Shroud Fan+Relay For 1967-1988 Chevy Nova Chevelle / 1965-1987 Buick Regal LeSabre

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 16" FAN AND Thermostat Kit !!! Radiator Size: Row: 4 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Size: 17" h x 20 3/4" w x 2-1/2" t Overall Size: 19" h x 27" w x 5.12" t Upper Radiator Hose （Left): 1 1/2" Lower Radiator Hose (Right): 1 1/2" Transmission: Automatic and Manual. Vehicle Fitment For 1968-1974 Chevy Nova 1969 1970 1971 1972 1973 For 68-87 GM 20" Core For 68-79 CHEVY NOVA / 75-87 EL CAMINO 21" WIDE CORE For 68-73 Chevy Chevelle For 71 72 73 Chevy Bel Air For 20 3/4 WIDE CORE FOR 70-81 CHEVY CAMARO For 71-88 CHEVY SMALL BLOCK CAMARO SBC l6/V6 For 70-76 Pontiac Firebird FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• ◆ Radiator Replacement For 1967-1988 Chevy Nova Chevelle / 1965-1987 Buick Regal LeSabre
• ◆ Improves cooling by 35% to 45% temperature
• ◆ Made of high quality full T-6061 aluminum construction
• ◆ Stronger and higher capacity for coolant than stock units
• ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
