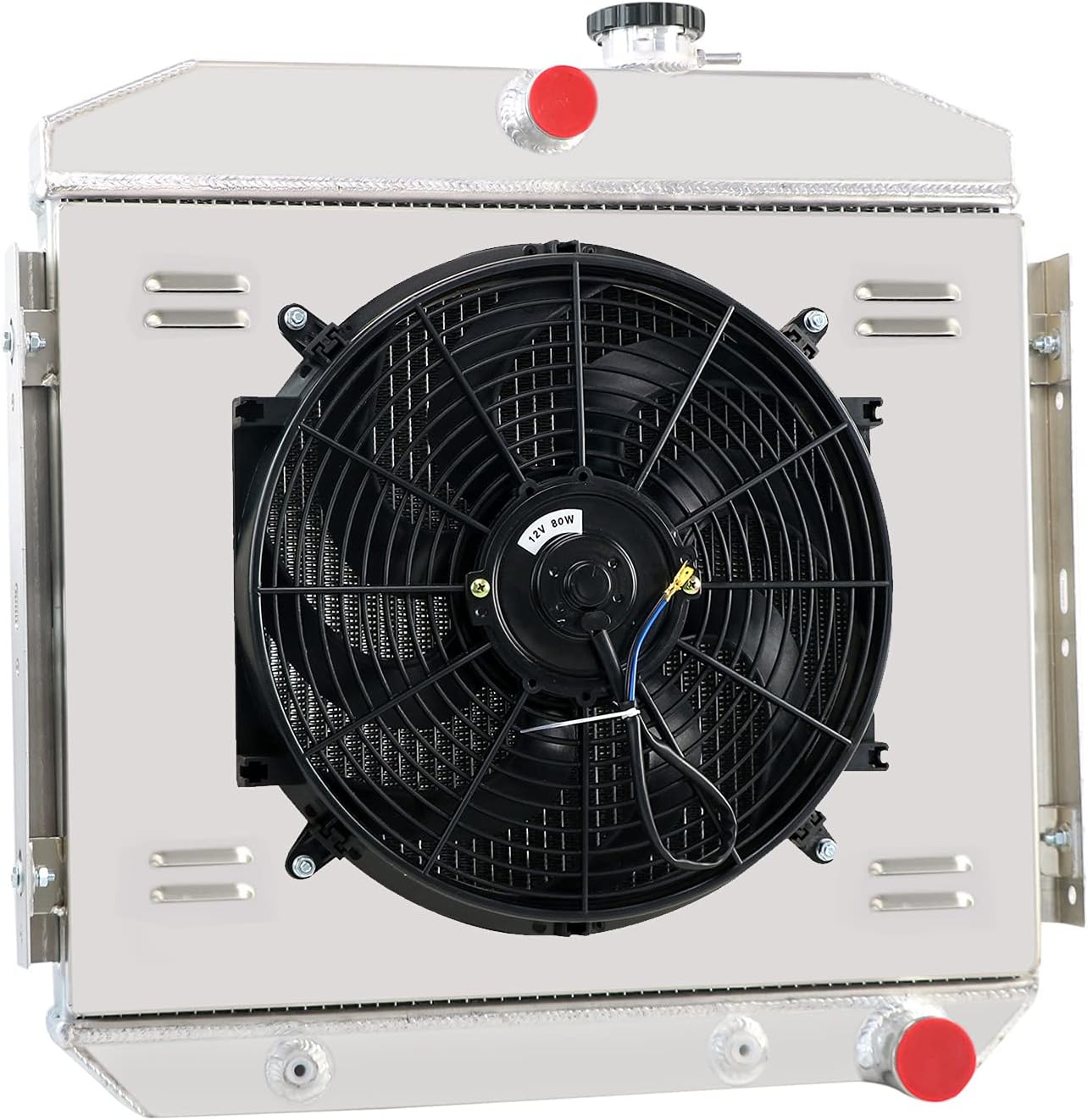

55-57 Chevy Belair Radiator, Radiator for 1955-1957 1956 Chevy Bel-air Del Ray 150 210 L6, 3 Row Aluminum Radiator + Shroud/Fan + Thermostat Relay Kit

This Radiator Compatible with: For 1955-1956 Chevy Belair 6 Cyl Core Support For 1955-1956 Chevy One-Fifty & Two-Ten Series 6 Cyl Core Support This radiator is designed for straight 6 engine mounting OEM/Substitute Numbers: AE5056, CUC5056, RA-SBC55-3, RA-SBC55-2, 5056, CC5056, EC5056, MC5056, DPI5056 Radiator Specs: High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Material: All Aluminum Tank Material: Full Aluminum Transmission Oil Cooler: Included Engine Oil Cooler: No Flow Type: Downflow Mounting Type: OEM Mount Petcock Drain: not included Radiator Cap: CNC machined filler neck and cap PLS check core/overall/inlet/outlet SIZE carefully before you order Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (inch): 14.050 Thickness (inch): 2.500 Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe Probe typically threads into radiator, water outlet or manifold RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans About product shipping: This aluminum radiator is big and easy got damaged during shipping, if the radiator or packing box arrived damaged, pls contact us and offer us pics of damage details, we offer a full refund or replacement If your radiator is leaking or not working after installation, pls contact us and send us a clear pics of leaking details, we will resend or refund for you according to your choice

• ►【Vehicle Fitment】New Aftermarket Replacement Radiator for 1955-1957 Chevy Bel Air 3.8L 3.6L L6; for 1957 Chevy Del Ray 3.8L L6; for 1955-1957 Chevy Nomad 3.8L L6; for 1955-1957 Chevy One-Fifty Series 3.8L L6 ; for 1955-1957 Chevy Two-Ten Series 3.8L L6 ; This radiator is designed for straight 6 engine mounting
• ►【Radiator Size】Down Flow Or Cross Flow Type: Down Flow ; Core Dimensions:(H x W): 17 1/4" X 21 1/2" x 1.74'' Thickness ; Overall Dimensions:(H x W): 24 1/2" X 23 3/4" ; Hose Locations: IN: Center - OUT: Passenger ; Hose Fittings: IN: 1 1/2 - OUT: 1 3/4 ; Trans Cooler: 50*1/8-27NPT(P) ; Mounting Type: OEM Mount
• ►【Premium Material】The KUUHLERSAT radiator is made of full TAA5052 aluminum construction, 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation and improved structural rigidity
• ►【New Design】The Aluminum radiator is arranged in a louvre-style fin pattern, increasing the width of the tubes to enhance water flow and contact area, providing the engine with maximum cooling efficiency
• ►【Easy to Install】Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
